开源单板计算机

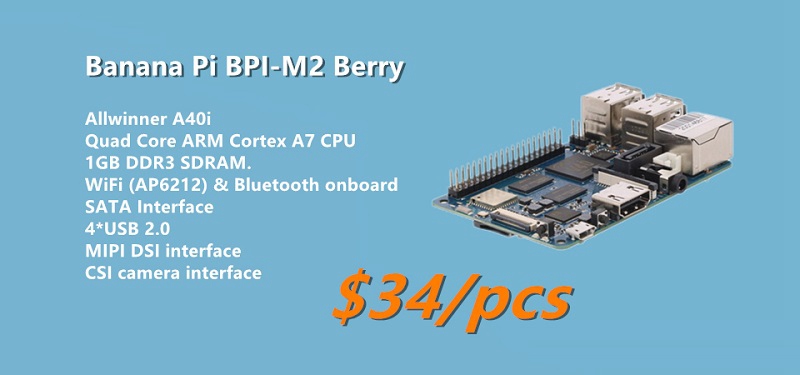

香蕉派BPI-M2 Berry单板计算机采用全志A40i/R40芯片方案设计,板载1GB DDR3 RAM内存

  • 全志科技Allwinner A40i/R40/V40 Quad Core ARM Cortex A7 CPU
  • 1GB DDR3 SDRAM内存.
  • 板载WiFi  & BT
  • SATA 硬盘接口
  • 4*USB 2.0接口
  • MIPI DSI 显示屏接口
  • CSI camera 摄像头接口

    香蕉派 BPI-M2 Berry 四核单板计算机采用全志 A40i/R40/V40芯片开发。支持板载Wifi与蓝牙,支持SATA接口,可以直接接硬盘。板上有SD卡插座,可以从SD卡启动系统镜像。

    Banana PI BPI-M2 Berry 兼容性强大,可以跑android系统,Debian linux,Ubuntu linux, Raspberry Pi系统和全志TinaLinux系统.

    Banana PI BPI-M2 Berry硬件:全志R40/V40四核处理器,1GB LPDDR3内存,千兆以太网口,4 USB 接口 流畅运行Android5.1。Banana PI BPI-M2 Berry尺寸与树莓派 3完全一样,可以直接使用树莓派3的外壳。GPIO兼容Raspberry Pi 3并能运行rasbian 系统。

    作为香蕉派家族的一员,BPI-M2 Berry是香蕉皮M1/M1+的直接升级版,支持SATA。

    板子的尺寸与接口都和Raspberry Pi 3一样,所以你可以用树莓派3的外壳等配件直接用在BPI-M2 Berry

    硬件接口:

    硬件规格:

    HardWare Specification of Banana pi BPI-M2 Berry
    Soc Allwinner A40i/R40/V40
    CPU quad-core cortex -A7,the most power efficient CPU core ARM‘s ever development
    GPU dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode.
    SDRAM 1GB DDR3 with 733MHz(shared with GPU)
    SATA suppoort SATA interface
    GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
    On board Network 10/100/1000Mbps Ethernet (Realtek RTL8211E/D)
    Wifi Module WiFi 802.11 b/g/n (AP 6212 module on board)
    Bluetooth BT4.0
    On board Storage MicroSD (TF) card,No eMMC onboard
    Display 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
    Video Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps
    Audio outputs HDMI, analog audio (via 3.5 mm TRRS jack), I2S audio (also potentially for audio input)
    Camera A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
    Audio input On board microphone
    USB 4 USB 2.0 host, 1 USB 2.0 OTG
    Buttons Reset button, Power button, U-boot button
    Leds Power status Led and RJ45 Led
    IR No onboard IR receiver
    DC Power 5V/2A with micro USB port
    battery No 3.7V lithium battery power support
    Sizes 85mmX56mm,same size as raspberry pi 3
    Weight 40g
    在线Wiki开发文档:https://docs.banana-pi.org/en/BPI-M2_Berry/BananaPi_BPI-M2_Berry
