STEAM education

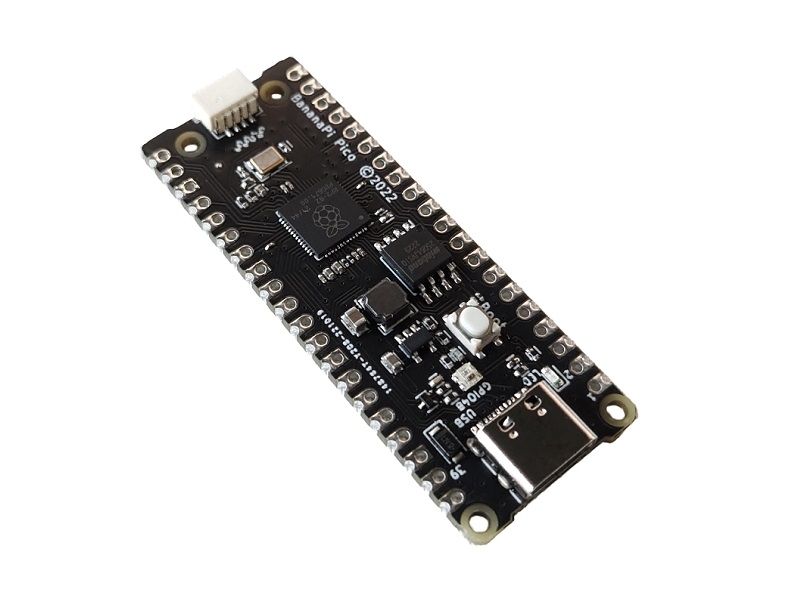

Banana Pi BPI-Pico-RP2040 with RP2040 chip design.Compatible with raspberry Pi Pico

  • Dual-core ARM Cortex M0+ CPU cores (up to 133 MHz)
  • 264K SRAM
  • 2MB Flash
  • 26 available GPIO pins, 4 of which support ADC analog input
  • 1 x LED
  • 1 x WS2812 LED
  • 1 × JST SH 1mm 4-Pin socket
  • 1 × USB Type-C socket

    The Banana Pi Pico series is a low-power microcontroller development board designed for the Internet of Things.BPI-Pico-RP2040 is a microcontroller development board launched by Banana Pi equipped with RP2040 chip. Its most notable feature is to add a Onboard WS2812 color LED; replace the 3-Pin DEBUG interface with a JST SH 1mm 4-Pin socket, which can be connected with Qwiic & STEMMA QT or any possible peripherals; replace the micro-USB socket with a USB Type-C socket , supports reversible insertion, and is compatible with the USB Type-C cable of most modern smartphones, no additional purchase is required.

    key features:
    • Dual-core ARM Cortex M0+ CPU cores (up to 133 MHz)
    • 264K SRAM
    • 2MB Flash
    • 26 available GPIO pins, 4 of which support ADC analog input
    • 1 x LED
    • 1 x WS2812 LED
    • 1 × JST SH 1mm 4-Pin socket
    • 1 × USB Type-C socket

    Hardware interface:



    Online Wiki development documents:https://wiki.banana-pi.org/BPI-Pico-RP2040
