Smart Router

Banana Pi BPI-R4 Lite Wifi Router board with Mediatek MT7987 chip design

MediaTek MT7987A Quad-core Arm Cortex-A53
2GB DDR4(SOC support can up to 4GB)
8GB eMMC flash
256MB SPI-NAND Flash
32MB SPI-NOR Flash
Micro SD card slot
1x 2.5G SFP
1x 2.5G RJ45 WAN(support POE with POE Module soldered)
4x 1G RJ45 LAN
1x USB3.0 slot

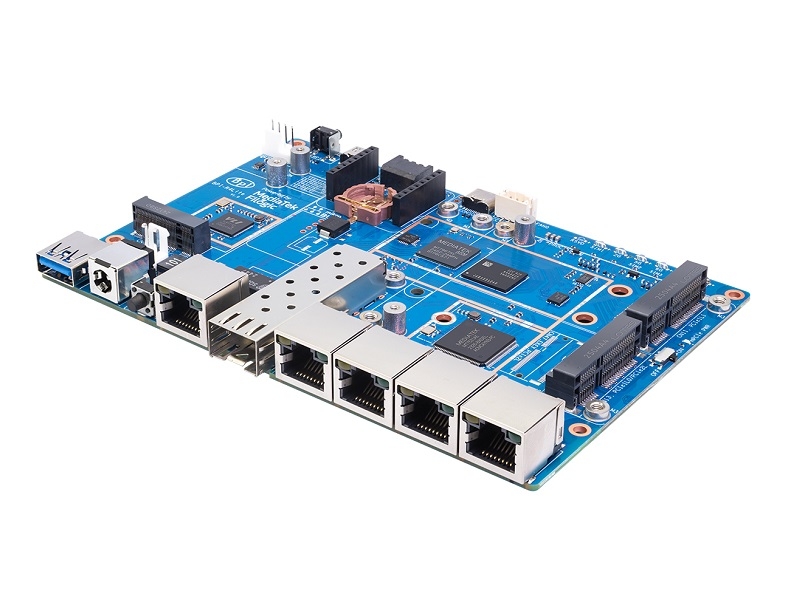

    Banana Pi BPI-R4 Lite smart router board design with MediaTek MT7987A Quad-core Arm Cortex-A53,it support 2GB DDR4 and 8G eMMC Flash on board. 1 2.5G SFP and 1 2.5G RJ45 WAN , support 4 x 1G RJ45 LAN port. support M.2 for 4G/5G module.1x miniPCIe slot with PCIe3.0 2lane interface for Wi-Fi 7 NIC.

    Key Features:
    * MediaTek MT7987A Quad-core Arm Cortex-A53
    * 2GB DDR4(SOC support can up to 4GB)
    * 8GB eMMC flash
    * 256MB SPI-NAND Flash
    * 32MB SPI-NOR Flash
    * Micro SD card slot
    * 1x 2.5G SFP
    * 1x 2.5G RJ45 WAN(support POE with POE Module soldered)
    * 4x 1G RJ45 LAN
    * 1x USB3.0 slot
    * 1x M.2 KEY-B slot with USB3.0 for 5G Module
    * 1x miniPCIe slot with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Option: 2x miniPCIe slots with PCIe3.0 1lane)
    * 1x miniPCIe slot with USB2.0 interface
    * 1x USB TypeC Debug Console
    * 2x8 PIN MikroBUS Header for expanding application
    Application direction:
    - Internet service Router
    - Wifi 7 Wireless Router
    - 4G/5G Wireless Router
    - Wireless Repeater
    - Home security Gateway
    - Home Automation
    - Nas device
    - Network and communication applications

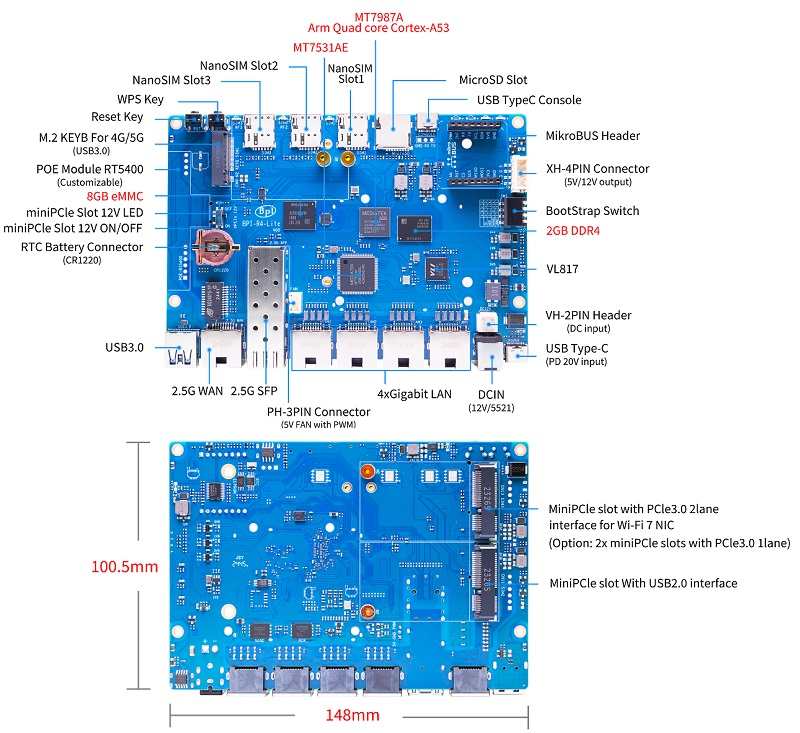

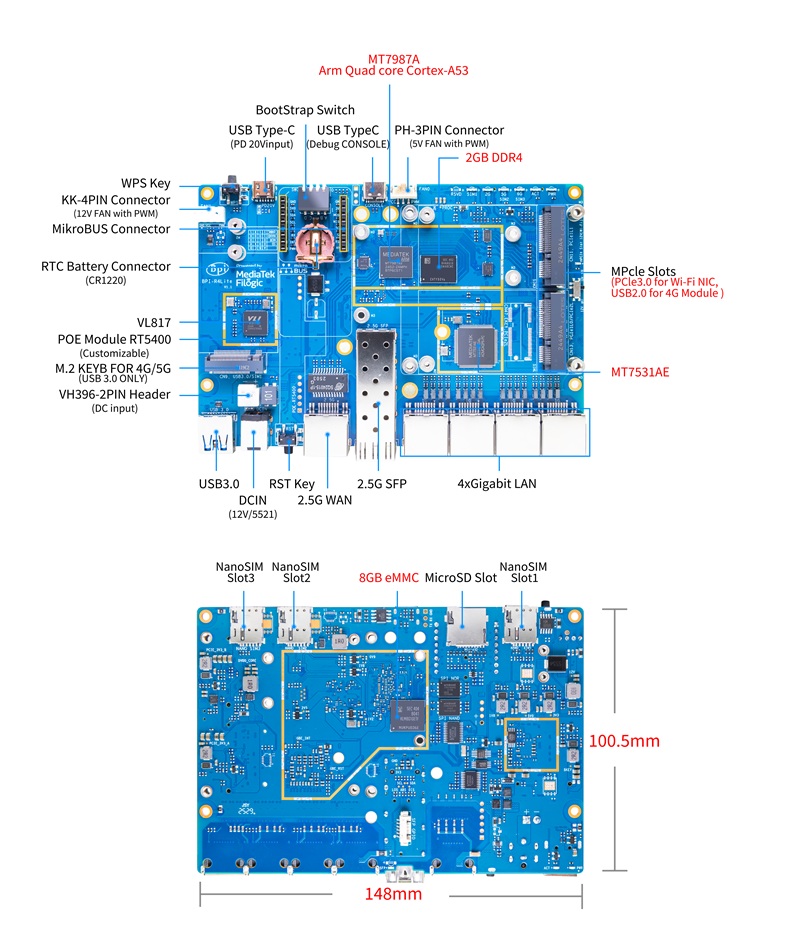

    Hardware interface:



    Hardware Spec:

    CPU

    MediaTek MT7987A Quad-core Arm Cortex-A53

    SDRAM

    2GB DDR4(SOC support can up to 4GB)

    On board Storage

    MicroSD (TF) card,8GB eMMC onboard

    GPIO

    2x8 PIN MikroBUS Header for expanding application,some of which can be used for specific functions including UART, I2C, SPI, PWM.

    On board Network

    1x 2.5G WAN and 4 x 10/100/1000Mbps Ethernet LAN

    SFP

    1x 2.5G SFP

    Wifi

    Wifi6/Wifi 7

    mini PCIE

    1x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) and 1x miniPCIe slot with USB2.0 interface

    M.2 interface

    1x M.2 KEY-B slot with USB3.0 for 5G Module

    USB

    1xUSB 3.0 slot

    Buttons

    Reset button,WPS botton, boot switch

    Leds

    Power status Led and RJ45 Led

    DC Power

    12V/5.2A

    Sizes

    100.5x148mm

    Weight

    250g


    Online Wiki documents:  https://docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite
