Banana Pi BPI-RV2 RISC-V open source gateway is a device based on Siflowe SF21H8898 SoC, 1 × 2.5G WAN network interface, 5 Gigabit LAN network interface, onboard 512MB DDR3 memory, 128 MiB NAND, 16 MiB NOR, M.2 interface, MINI PCIE and USB 2.0 interface, etc.
Banana Pi BPI-RV2 open source gateway is a collaboration between Silicon Chang and Banana Pi open source community (Banana Pi)

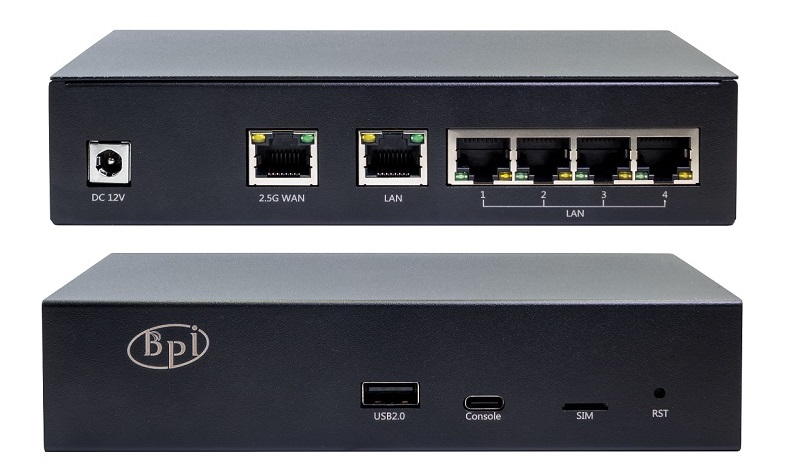

Hardware interface:
Hardware spec:
|
SoC |
Siflowe SF21H8898 4 core RISC-V @ 1.25GHz |
|
RAM |
512MB DDR3 |
|
Storage |
128 MB SPI NAND Flash is used in U-boot and Linux systems |
|
16 MB SPI NOR flash，For U-boot and Linux systems, write protected by default (refresh can be enabled by jumper) |
|
|
M.2 2242 interface support NVMe SSD hardsik(PCIe gen 2 x1) |
|
|
Network |
1 x 2.5GbE RJ45 port |
|
5 x giga RJ45 port |
|
|
USB |
Use the USB Type-C (device, console) port of the UART to USB chip |
|
1x USB 2.0 Type-A USB HOST port |
|
|
PCIE |
M2 keyB， Supported Rates PCIe gen 2 x1，Can be used to connect SSD hard drives, 5G modules, etc |
|
MINI PCIE，Supported Rates PCIe gen 2 x1，Can be used to connect WiFi module, wired network card, etc |
|
|
Extension |
MikroBUS expansion module socket |
|
Debug |
Console connected via USB-C port or 3-pin connector |
|
RTC |
Support for on-board RTC real-time clock |
|
Others |
Reset and user buttons |
|
Boot choose：NAND（normal） Or NOR（Reset） |
|
|
(I2C interface) RTC，Backup battery holder with CR1220 button battery |
|
|
support add 802.3at/af PoE module |
|
|
Size |
148 x 100.5 mm |
online wiki development documents: https://docs.banana-pi.org/en/BPI-RV2/BananaPi_BPI-RV2
