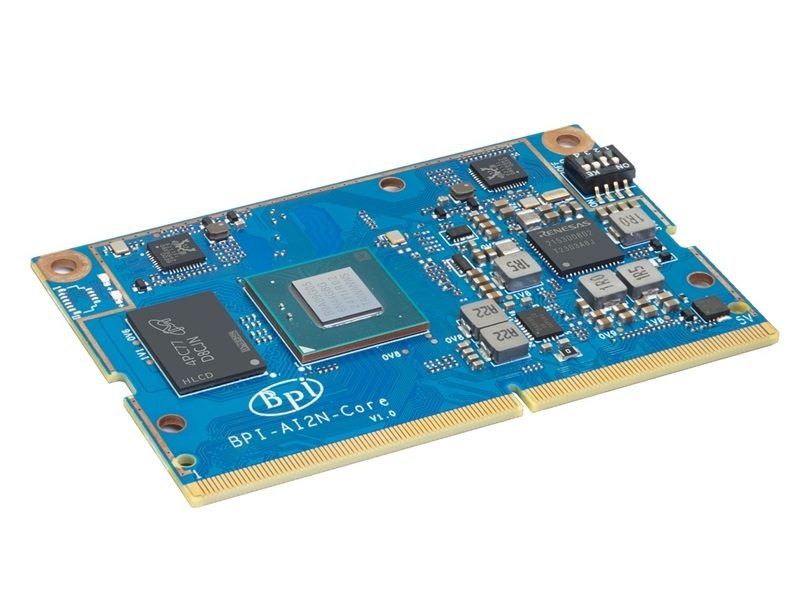

Banana Pi BPI-AI2N System-on-Module (SoM) and BPI-AI2N carrier board are open-source hardware solutions designed to leverage the advanced capabilities of the RZ/V2N Vision AI MPU. Designed with a flexible, community-driven ecosystem, the BPI-AI2N platform empowers developers to accelerate innovation and streamline application development. Powered by the RZ/V2N MPU, it delivers industry-leading AI acceleration of 15 TOPS (Sparse) and high-performance computing with 4x Arm® Cortex®-A55 processors, making it an ideal choice for creating cutting-edge vision AI solutions.
Key Features:
-
Small Form Factor: Compact SO-DIMM 260PINs design (SOM module size: 45x69.6mm)
-
Open-source development kit, including SOM, BPI-AI2N Carrier board and a rich ecosystem of tools and support from the Banana Pi developer community
-
Customizable hardware & software by OEM&ODM
-
Yocto and other open-source software support
-
Memory & storage: 8GB LPDDR4x, 32GB eMMC, 64MB QSPI Flash
-
Wide operating temperature range from -40℃ to 85℃

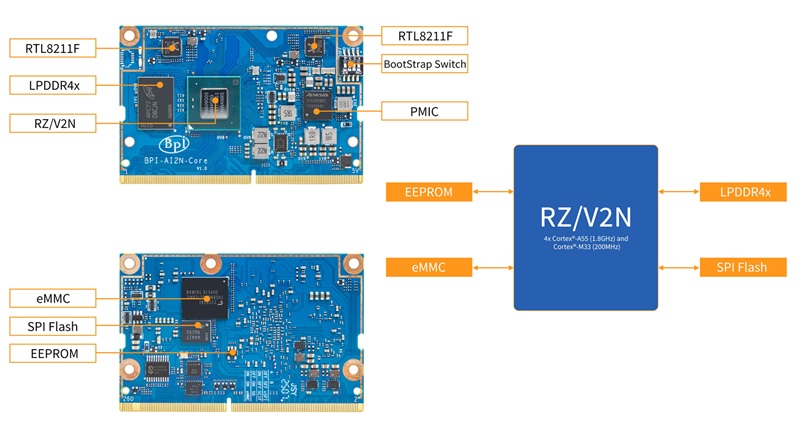

BPI-AI2N Core board interface:

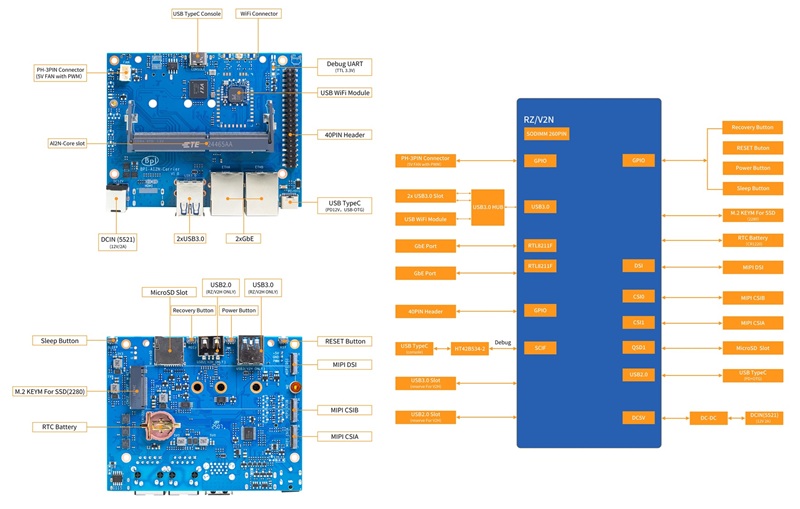

BPI-AI2N Carrier board interface:
More please see online wiki documents: https://docs.banana-pi.org/en/BPI-AI2N/BananaPi_BPI-AI2N
