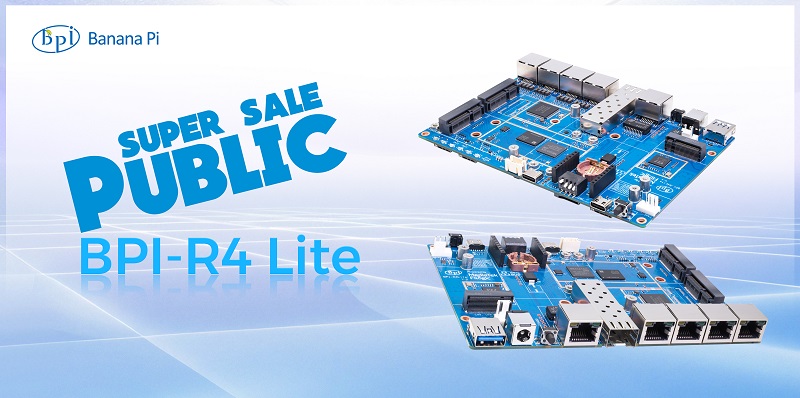

Banana Pi BPI-R4 Lite MediaTek MT7987A Open Source Router board public sale
Time:2025-08-14
Views:5
Banana Pi BPI-R4 Lite smart router board design with MediaTek MT7987A Quad-core Arm Cortex-A53,it support 2GB DDR4 and 8G eMMC Flash on board. 1 2.5G SFP and 1 2.5G RJ45 WAN , support 4 x 1G RJ45 LAN port. support M.2 for 4G/5G module.1x miniPCIe slot with PCIe3.0 2lane interface for Wi-Fi 7 NIC.
The MediaTek MT7987A is a world-leading network processing platform for high-performance and reliable networking experiences, both in wired and wireless applications. The MT7987A comprises a rich connection interface set, including 1 2.5 Gigabit Ethernet port, 2 HSGMII/SGMII interfaces, 1 PCIe 3.0 2L/1+1L interface, and 1 USB 3.2 Gen1 port and 1 USB 2.0 port, where the USB3 port shares the same interface with 1 HSGMII/SGMII interface; only one can be activated at a time. The MT7987A further enables seamless Wi-Fi 7 connectivity with its Wi-Fi 7 companion chip.
Online Documents and easy to buy: https://docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite
The MediaTek MT7987A is a world-leading network processing platform for high-performance and reliable networking experiences, both in wired and wireless applications. The MT7987A comprises a rich connection interface set, including 1 2.5 Gigabit Ethernet port, 2 HSGMII/SGMII interfaces, 1 PCIe 3.0 2L/1+1L interface, and 1 USB 3.2 Gen1 port and 1 USB 2.0 port, where the USB3 port shares the same interface with 1 HSGMII/SGMII interface; only one can be activated at a time. The MT7987A further enables seamless Wi-Fi 7 connectivity with its Wi-Fi 7 companion chip.
BPI-R4 Lite supports:
* 2G DDR4 +8G eMMC
* 2.5G SFP + 2.5G RJ45 WAN (PoE-ready)
* Wi-Fi 7 NIC & 5G Module via M.2 and miniPCIe
* USB 3.0, eMMC, SPI-NAND,NOR, and MicroSD
* 2x8 PIN MikroBUS headers for expansion
* Open-source friendly and developer-ready
Online Documents and easy to buy: https://docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite
