Single board computer

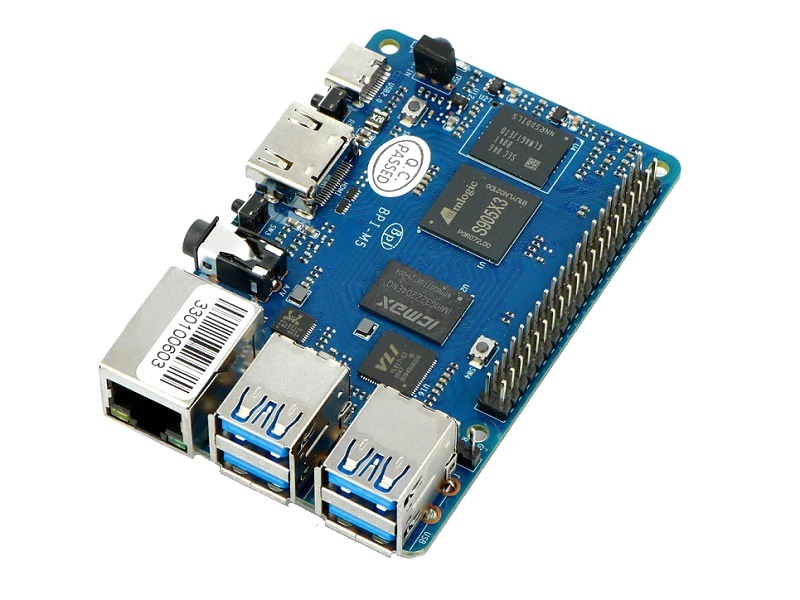

Banana Pi BPI-M5 with Amlogic S905x3 chip design, 4GB RAM and 16GB eMMC

  • Amlogic S905X3 quad core Cortex-A55 (2.0xxGHz)
  • Mali-G31 GPU
  • 4GB LPDDR4
  • 16GB eMMC flash
  • 4 USB 3.0
  • 1 GbE ethernet
  • HDMI output


    Banana Pi BPI-M5 is a new generation single board computer design , use Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor. Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz). BPI-M5 will come with 4GB LPDDR4 RAM, 16GB eMMC flash, and offers four USB 3.0 ports, one Gigabit Ethernet port, and on HDMI 2.1 output port for 4K video output.

    BPI-M5 The Next Generation Single Board Computer From Banana Pi:

    Hardware interface:



    Hardware spec:
    HardWare Specification of Banana pi BPI-M5
    CPU Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
    GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
    Memory 4 GB LPDDR4
    Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
    Network 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
    Video Output(s) 1 x HDMI 2.0 (up to [email protected] with HDR, CEC, EDID)
    Audio Output(s) 3.5mm jack and 1 x HDMI digital output
    USB ports USB 3.0 PORT (x4)
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
    Switches Reset, Power and U-boot
    LED Power Status and Activity status
    Power Source 5 volt @3A via Micro USB (TYPE C)
    Size & Weight 92x60mm, 48g
    OS Android and Linux
    BPI-M2 Pro VS BPI-M5 VS Odroid C4 VS Raspberry Pi 4
    Banana Pi BPI-M2 Pro Banana Pi BPI-M5 Odroid C4 Raspberry Pi 4
    Processor Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
    GPU Mali-G31 MP2 GPU Mali-G31 MP2 GPU Mali-G31 MP2 GPU Broadcom VideoCore VI
    RAM 2GB LPDDR4 4GB LPDDR4 DDR4 4GiB with 32-bit bus width 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
    Storage micro SD card slot & 16GB eMMC flash on board micro SD card slot & 16GB eMMC flash on board micro SD card slot , eMMC connector for option micro SD card slot, non EMMC
    Network 1 GbE ,WiFi&BT5.0 onbard GbE ,Optional WiFi USB dongle GbE GbE, 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
    Video Output 1 x HDMI 2.1 (up to [email protected] with HDR, CEC, EDID) 1 x HDMI 2.1 (up to [email protected] with HDR, CEC, EDID) 1 x HDMI 2.1 (up to [email protected] with HDR, CEC, EDID) 2 × micro-HDMI 2.0
    Audio Output 1 x HDMI digital output 3.5mm jack and 1 x HDMI digital output Optional SPDIF optical output 3.5 mm analogue audio-video jack
    DSI N/A N/A N/A 2-lane MIPI DSI display port
    CSI N/A N/A N/A 2-lane MIPI CSI camera port
    USB USB 3.0 x 2 1 Micro USB 2.0 USB 3.0 x 4 TYPE C USB 3.0 x 4, 1 x Micro USB 2.0 port (OTG) 2 USB 3.0 ports; 2 USB 2.0 ports;
    Power 5 volt @3A via DC power 5 volt @3A via Micro USB (TYPE C) 1 x DC power jack (Outer diameter : 5.5mm, inner diameter : 2.1mm) 5V DC via USB-C connector (minimum 3A*)
    IR Yes Yes Yes N/A
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). 40 x GPIO pins 40-pin GPIO header, populated
    Button Reset, user and U-boot Reset, user and U-boot N/A N/A
    LED Power Status and Activity status Power Status and Activity status Power Status and Activity status Power Status and Activity status
    Dimensions & weight 65mm x 65mm,58g 85mm x 56mm, 48g 85mm x 56mm 59g 88 mm × 58 mm, 46 g
    System Support Linux & Android Linux & Android Linux & Android Linux & Android

    Online wiki development document: https://wiki.banana-pi.org/Banana_Pi_BPI-M5

    Banana Pi M5: ARM SBC with eMMC:
